This home is truly secure and self sufficient. The underground structure was designed to withstand a 1-Megaton blast up to 1.6 miles away. The building entrance blast doors are made of heavy gauge steel, which make it nearly impossible to gain unauthorized entrance. Internal self-reliant equipment includes two redundant 12 kWh diesel generators, two 4KW inverters, two independent sets of battery banks, and a wind generator. Pellet stoves and solar collectors provide heat and solar assisted hot water. An NBC (Nuclear Biological & Chemical) system provides filtering and overpressure protection with both 110 VAC and 12 VDC blowers. The home is under computer control and is voice commanded.

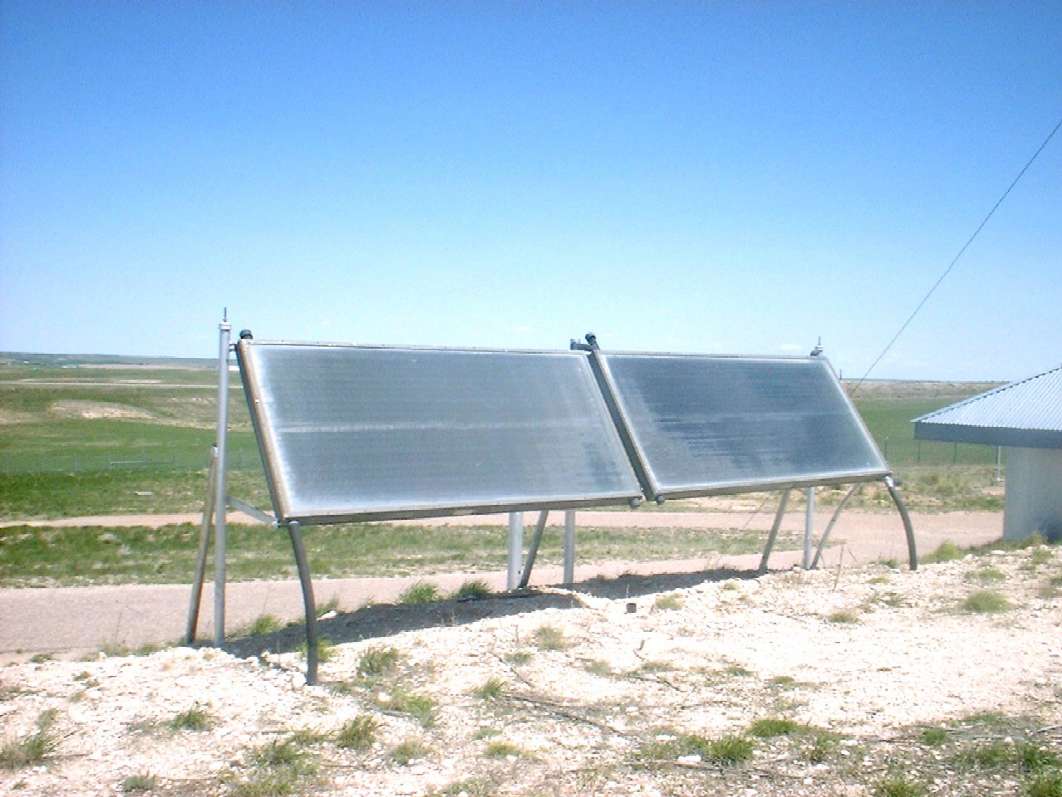

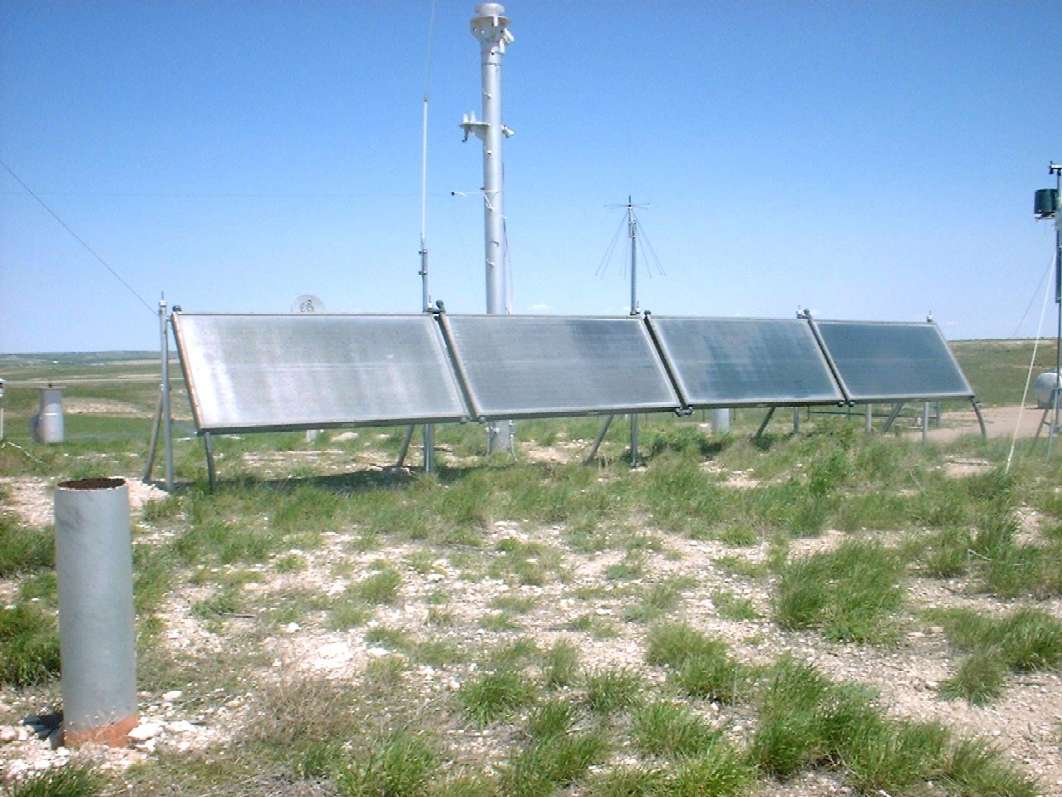

Four Panel and Two Panel Solar System (Living Area)
Solar Assisted Hot Water Heater
Comfort Heating
Fresh Air Circulation and Exchange System

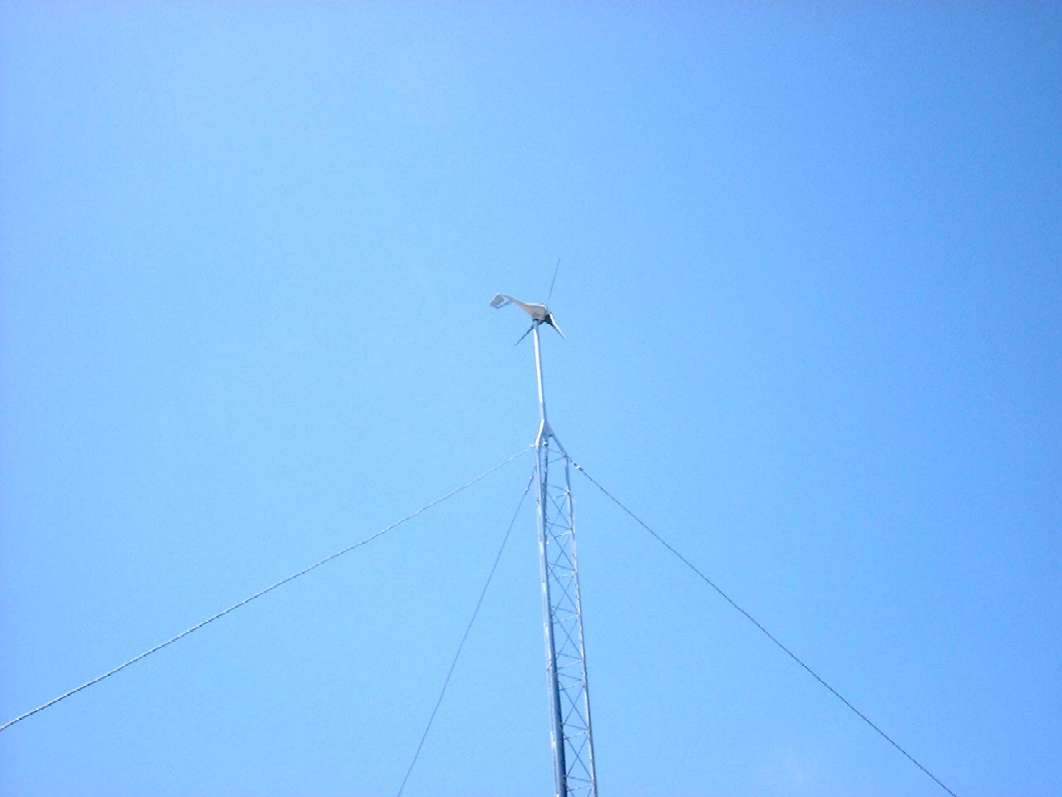

400 Watt 12V Wind Generator (Air404)

Security Camera (PELCO Color w/PTZ)
Wireless Weather Station Display (Rainwise)
Rainwise (WS2000 with Wireless Display) Computer Interface

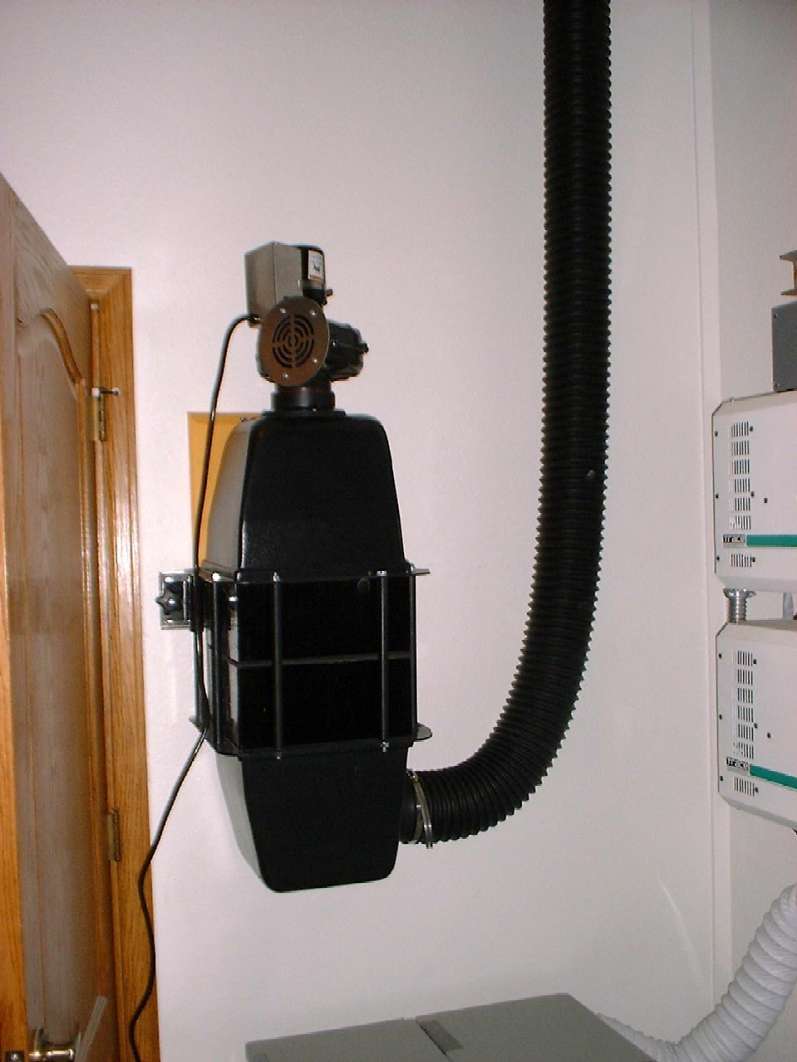

NBC (Nuclear, Biological & Chemical) Filtration/Overpressure System
NBC 110V AC & 12 V DC Blowers

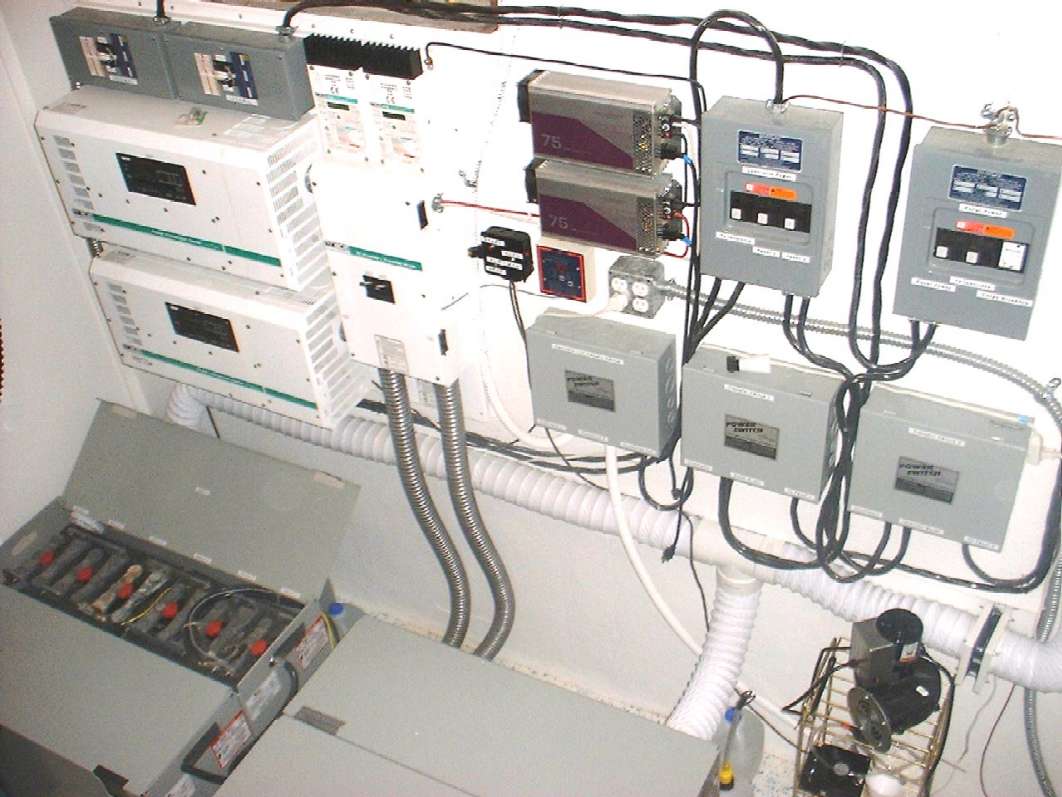

Uninterruptable Power System

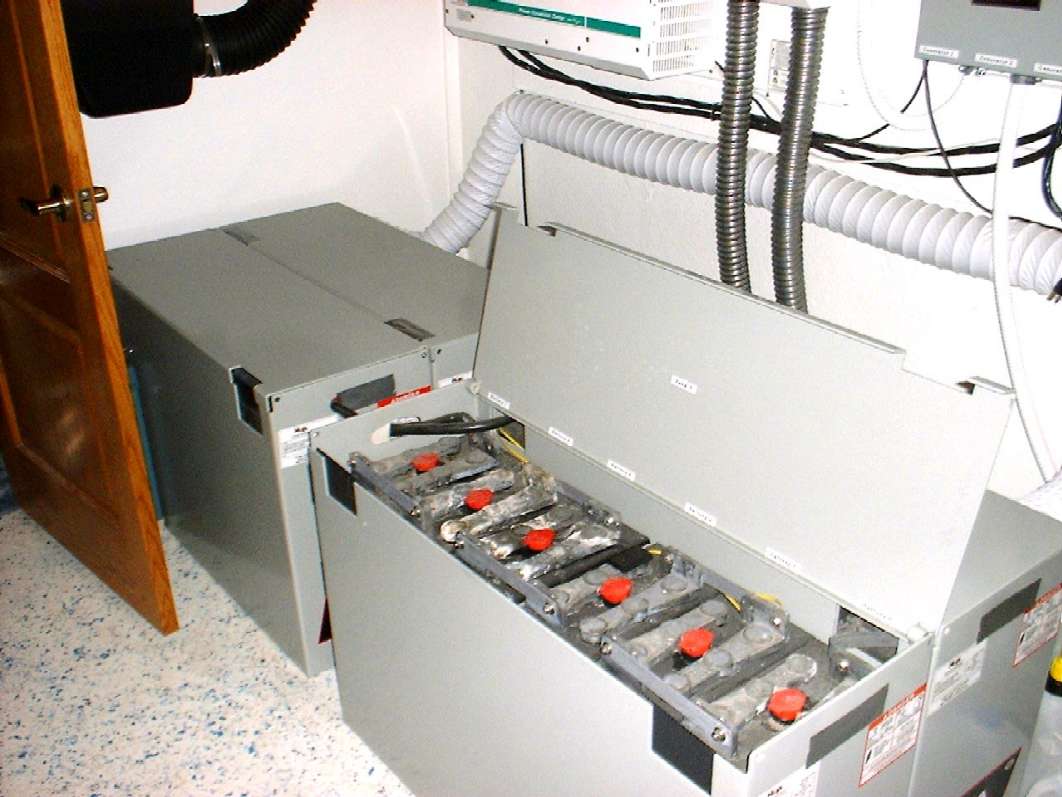

Battery Bank (Flooded Cell 3380 A/H)
2-4KW Inverters (Trace Power Panel PPSW4024/D)
Automatic Power Transfer Switches
Wind and Photovoltaic Ready (24 Volt System)
Wired to two 12KW Diesel Generators

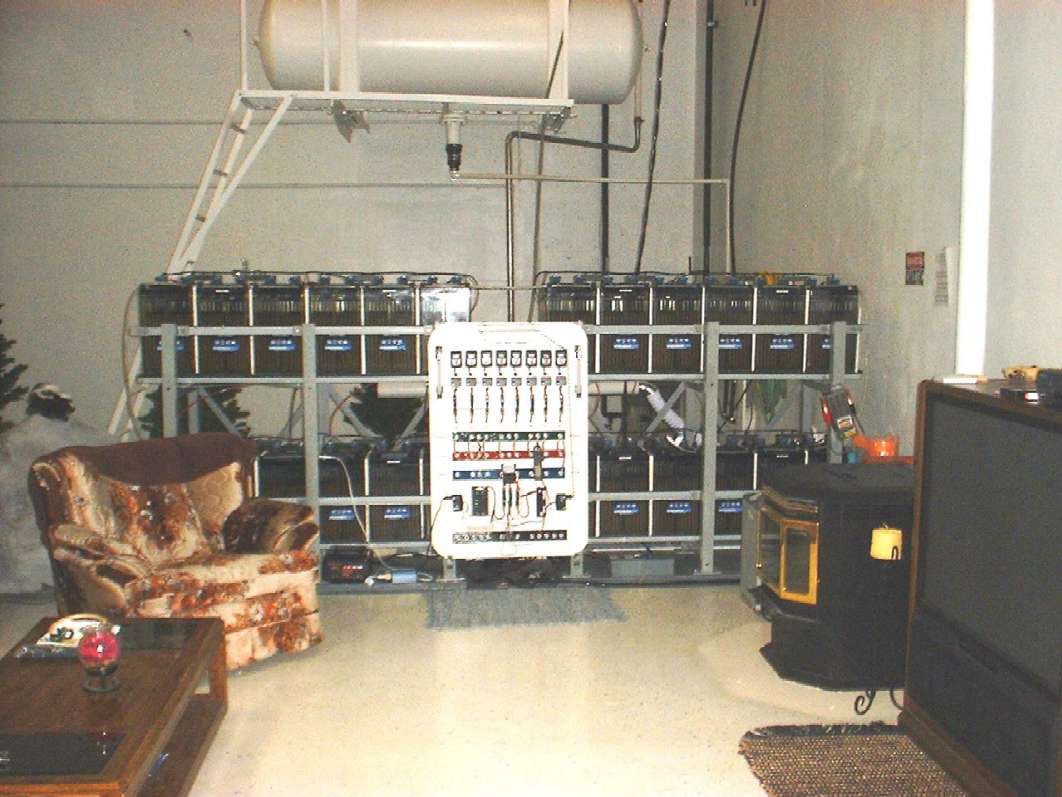

Eight Banks of 12V Globe Batteries with Control Panel
Battery Bank charged with Wind & Alternator & Battery Charger
160 Amp Alternator on Diesel Generator wired in for Battery Bank Charging


X10 Home Automation Control
HomeVision® Controller
HomeVoice® Voice Activation Software
X10 Filters/Coupler/Amplifier
Motion Sensors in Each Room
Satellite Dish System

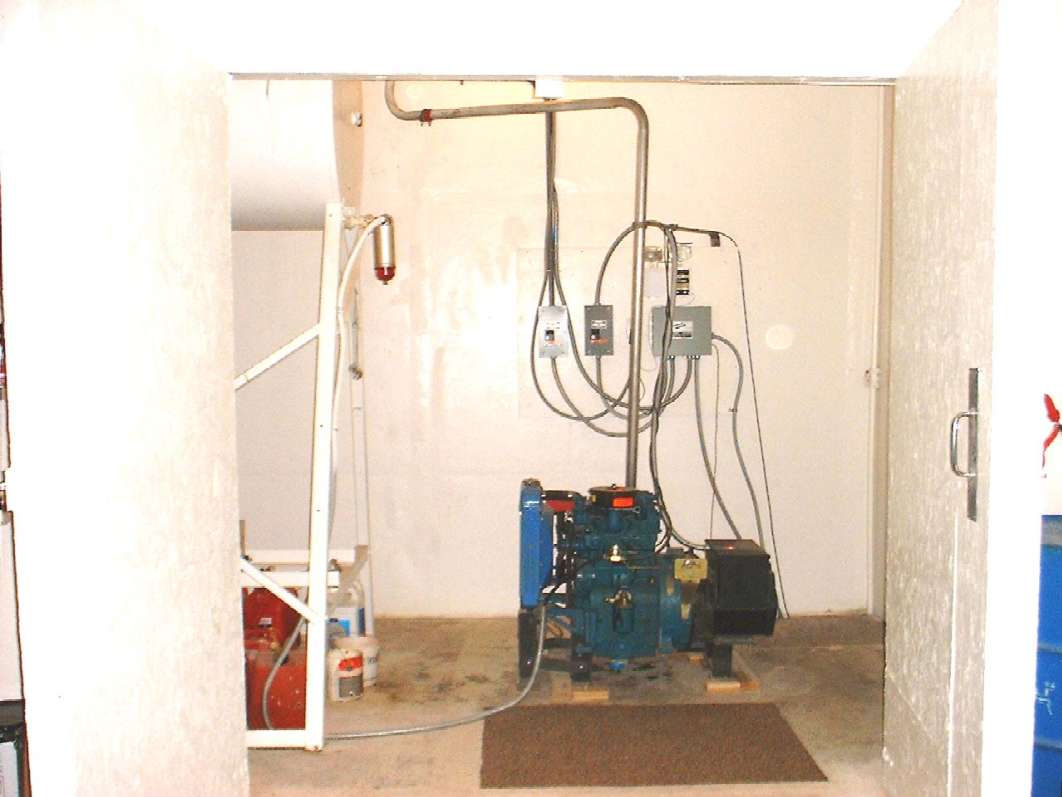

2 Diesel Generators (12KW)
290 Gallon Diesel Tank
Power Transfer Switch
Drain

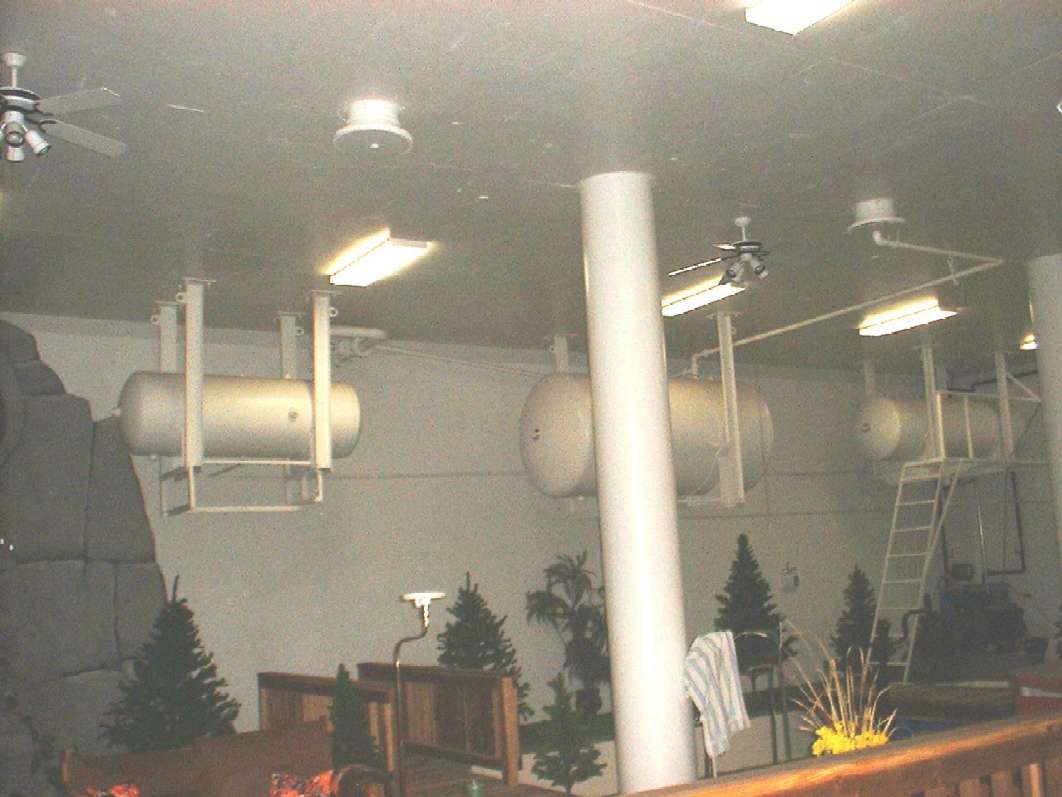

Three Tanks suspended from ceiling
Water (520 Gallons)
Diesel Tanks (250 Gallons & 1000 Gallons)
2nd Generator (Living/Patio area)

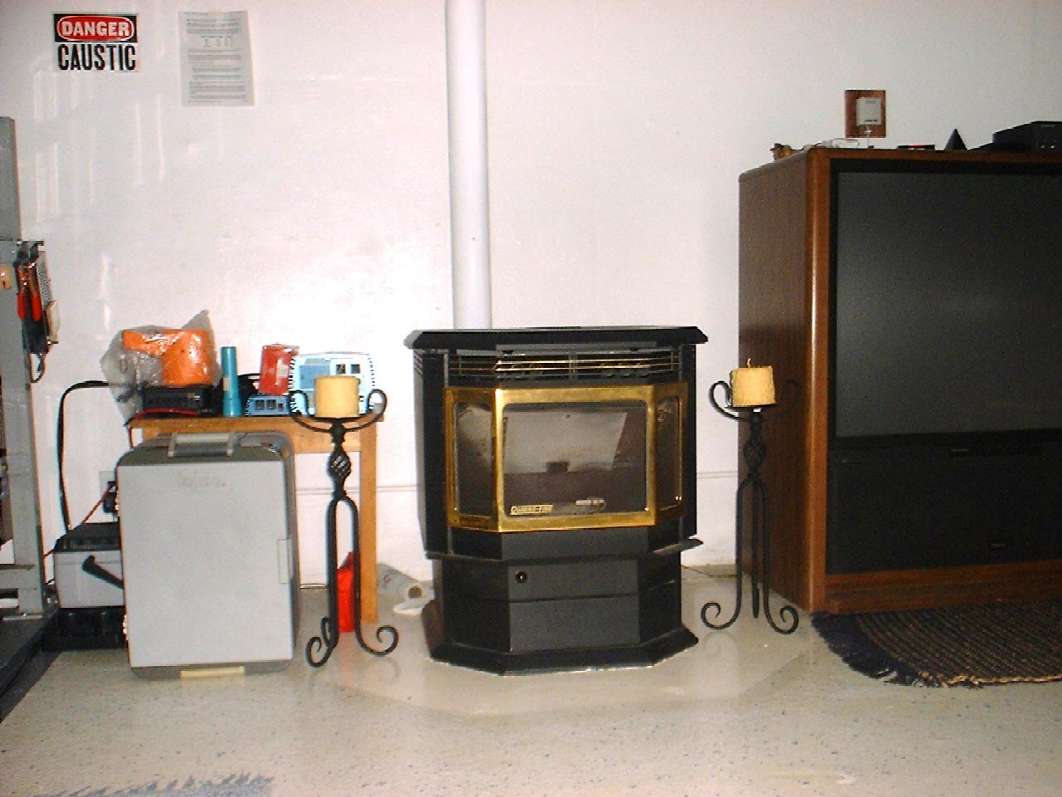

Area Pellet/Corn Stove (QuadraFire; 14,000 - 40,000 BTU)
One in Patio and one in Living Room

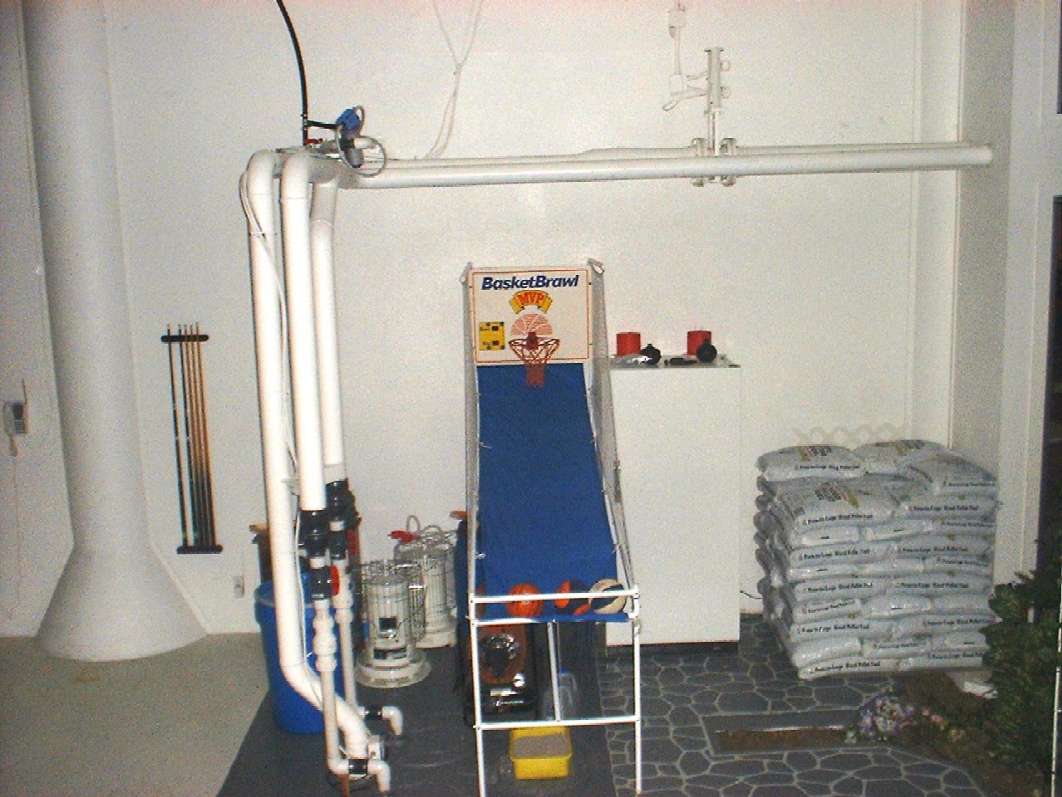

Two 1 HP Sewage Ejector Pumps 5590 Gallons Inside Sewage Holding Tank
Pumps to Outside Septic Tank and Drain Field
